SpatiaLite Interpretation Database

Geocene3D uses a SpatiaLite database to store interpretation points. SpatiaLite is an extension of SQLite that adds support for spatial data, enabling the storage and management of point geometries directly within the database. The database is generated during Setting Up Data for Modeling.

Each interpretation point layer in Geocene3D is stored as a separate table in the database. These tables include a geometry field named xypoint, which holds the spatial location of each interpretation point as a two-dimensional coordinate.

The xypoint field is of type POINT and uses SpatiaLite’s spatial format to store each point’s position in terms of Easting (X) and Northing (Y) coordinates.

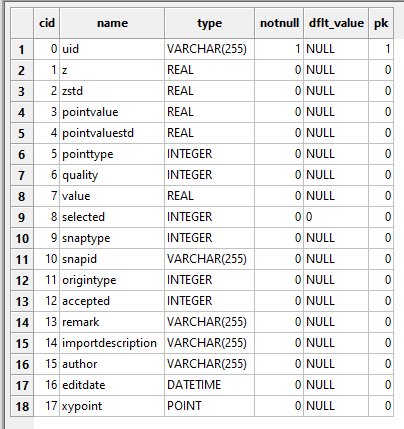

Each interpretation point table in the database includes the following fields:

uid: VARCHAR(255) — unique identifier (primary key)

z: REAL — elevation value

zstd: REAL — standard deviation of elevation

pointvalue: REAL — value associated with the point

pointvaluestd: REAL — standard deviation of the point value

pointtype: INTEGER — numeric code for point type

quality: INTEGER — quality score

value: REAL — optional additional value

selected: INTEGER — flag indicating if the point is selected

snaptype: INTEGER — snapping type information

snapid: VARCHAR(255) — identifier for snapped feature

origintype: INTEGER — origin type code

accepted: INTEGER — accepted status

remark: VARCHAR(255) — textual note or comment

importdescription: VARCHAR(255) — description related to import

author: VARCHAR(255) — name of the person who created or imported the point

editdate: DATETIME — timestamp of the last modification

xypoint: POINT — geometry field storing the coordinates as Easting and Northing

The xypoint field stores the location of each interpretation point as a pair of coordinates:

Easting — the horizontal position (X)
Northing — the vertical position (Y)

These coordinates are stored in the geometry field using a specific EPSG code, which defines the coordinate reference system used when the data is visualized externally.

Important: Geocene3D itself does not use projections internally. The EPSG code only matters when the database is opened in external software such as QGIS, where the coordinates need to be placed correctly on a projected map. The EPSG value is defined by the user during the modeling setup process (Setting Up Data for Modeling) to ensure consistency when exchanging data with mapping tools.

The database requires a GUID (Globally Unique Identifier) to uniquely identify each entry. A GUID is a 128-bit value written as a string in a fixed format, using five groups of hexadecimal digits separated by hyphens, in the 8-4-4-4-12 pattern.

This is the exact format used:

{D362ABBF-E812-4276-B216-AE55CB04B187}

Format rules:

• The value must begin and end with curly braces {}
• All letters must be uppercase
• Hyphens must follow the 8-4-4-4-12 grouping
• The total length must be 38 characters, including the braces

Important: The GUID must be generated using code that produces valid and unique identifiers.
Copying GUIDs is not allowed — not even between different tables or layers. Every point must have its own unique GUID, even if it belongs to a separate interpretation layer. Manually typed, duplicated, or reused values will not be accepted and may break uniqueness or cause conflicts in further processing.

When using GeoCloud LARCOS, this specialized interpretation database is the file that is uploaded when you perform a check-in of your model edits. The edits are made in Geocene3D and then uploaded to the GeoCloud LARCOS website during the check-in process. Any interpretation points you have added or modified are stored in the SpatiaLite database and transferred to the cloud. These points are then used to update the current model in the cloud environment, ensuring that your changes are reflected and made available to other users or cloud-based workflows.

In GeoCloud LARCOS, all interpretation points from different layers are merged into a single table, where all existing points also reside. Because of this, it is essential that every GUID is globally unique across all tables in the SpatiaLite interpretation database. This prevents identifier conflicts and ensures that each point can be correctly recognized and updated. This design reinforces the rule described in the Required Field: uid format section above — GUIDs must never be reused, even between different interpretation layers.

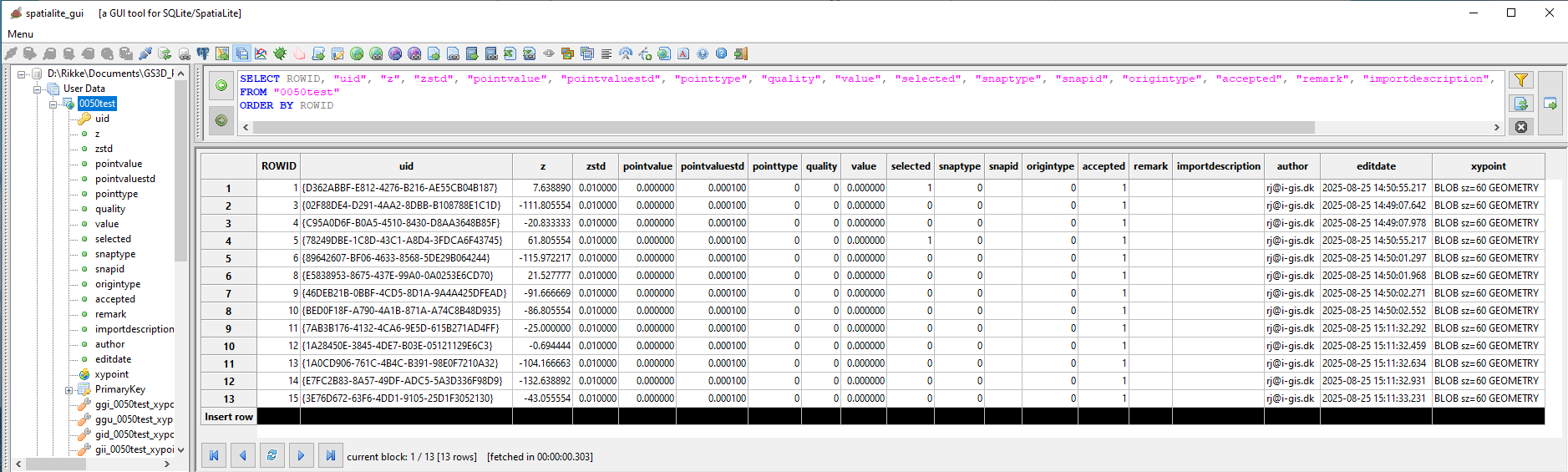

You can view and work with the Geocene3D SpatiaLite database in QGIS:

1. Open QGIS
   • Start QGIS and open a project (new or existing).
2. Drag the database into QGIS
   • In your file system, locate the .sqlite database file.
   • Drag it directly onto the QGIS map canvas.
3. Confirm the layer is added
   • The point layer from the database loads automatically into the Layers panel and is displayed on the map.
4. Inspect or style the layer

Use the Identify Features, Symbology, or Attribute Table tools to explore and work with the layer as needed.

When loaded, QGIS will use the EPSG code stored in the geometry metadata to display each point at the correct Easting and Northing coordinates on the map.
